V2 Time Series
Overview
Technical Data
Catalog
With good ventilation and heat dissipation performance, the main body of the electrical enclosure box has a complete welded frame structure, high-standard electromagnetic shielding design, which meets the protection of weak current equipment in complex outdoor environments; the electrical enclosure box adopts an independent roof structure, forming a condensation chamber on the top of the electrical enclosure box, It also acts as a top heat insulation.
BOX CRAFT AND DESIGN
The whole electrical enclosure box is seamlessly welded, and any surface of the electrical enclosure box can withstand an external pressure of more than 100KG without deformation.

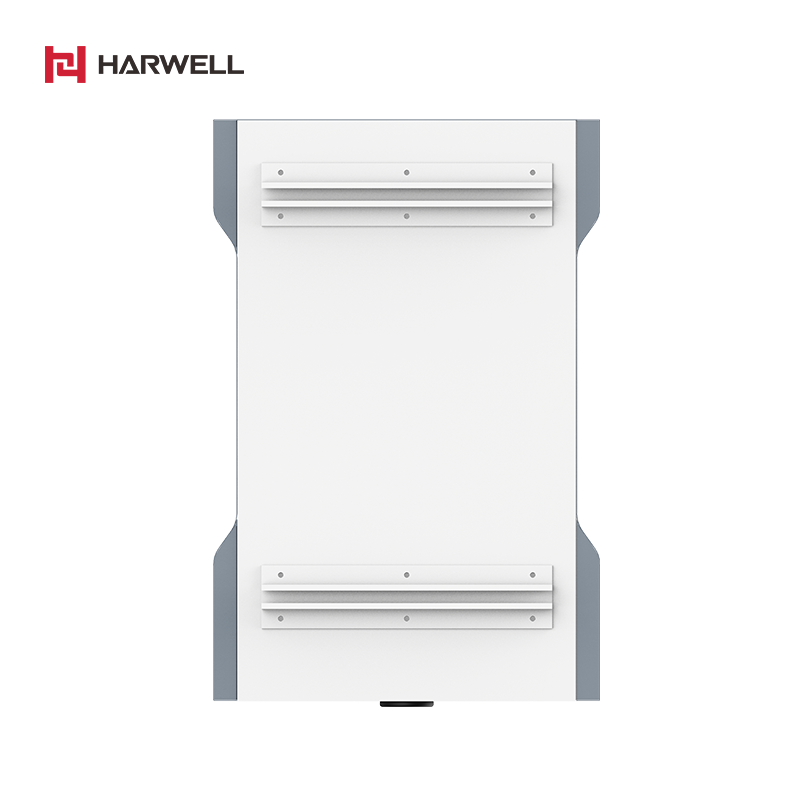

The electrical enclosure box back beam, door hinge (hinge) and connection installation parts are made of aluminum alloy or 304 stainless steel, which avoid the possibility of loosening due to corrosion, and confirms the overall firmness and safety reliability in the outdoor environment.

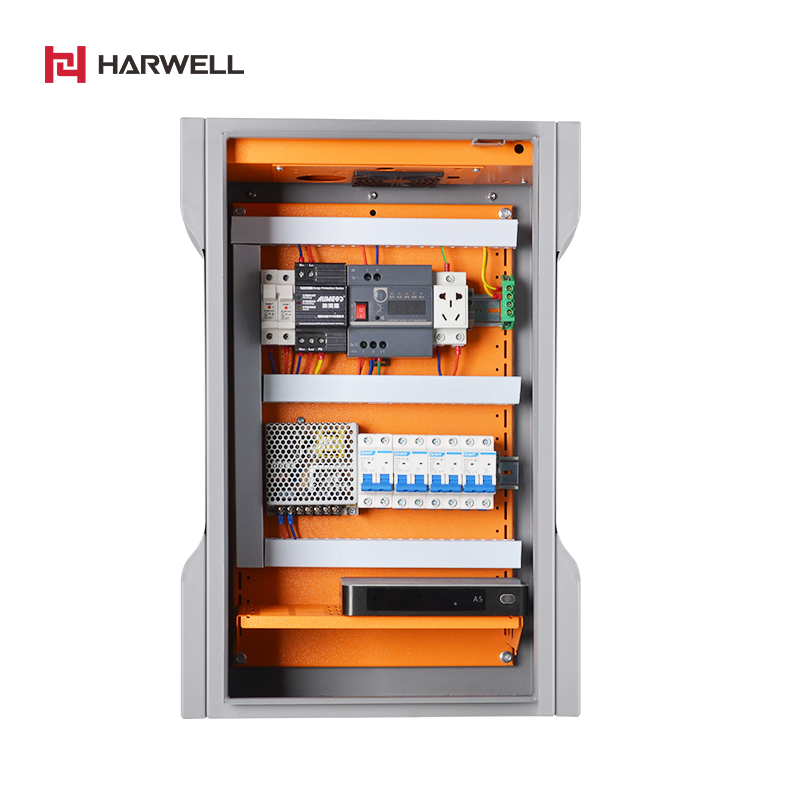

The electrical enclosure box has electrical configuration conditions such as door magnetic switch, alarm horn, alarm light, out-of-box lighting, and remote signaling alarm.
It is used in multiple outdoor scenes and many industries. Telecommunications, video surveillance, public safety, dust noise monitoring, artificial intelligence, new energy, hydrological monitoring, geological monitoring, drones, smart farms, smart parking,storage batteries etc.
DIMENSIONS | |||
Model | Outter Size | Inner Size | Gross Weight |
V2-3415 | 300*400*150mm | 250*350*140mm | 7.9KG |
V2-4620 | 400*600*200mm | 350*590*190mm | 14.6KG |
STANDARD PARAMETERS | |||
Brand | Harwell | Thickness | 1.2MM |
Series | V2 Time | Material | 430 Stainless Steel |
Product Name | Outdoor Enclosure Box | Color | Dark Gray+Light Gray |
Patent No. | 4726330 | Protection Class | IP55 |
Door Opening Method | Right Door/Front Door | Inlet Hole | Bottom |
Surface Treatment | Powder Coating | Operating Temperature | -40°C to 120°C |
Shock Resistance | IK10 | Installation | Pole/Wall/Floor |

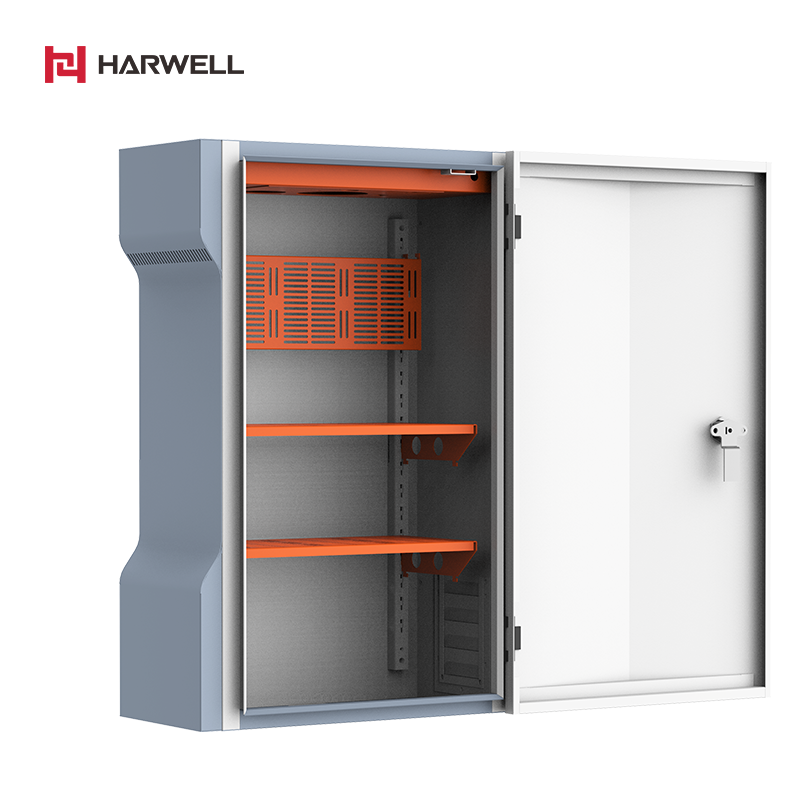

Standard Components | Cabinet*1 ,Door*1 ,Top Cover*1 ,Side Cover*2 ,Aluminum Alloy Back Beam*2 ,H Column*2 ,Fan Tray*1, Door Lock*1, Door Hinge*2, Mounting Plate*2/3, Screw Package*1,Din Rail*1 |
APPLICATION
*High temperature or corrosive environments
*Hydraulic or pneumatic control installations
*Remote wireless LAN Wi-Fi equipment installations
*Indoor and outdoor installations
*Industrial control equipment installations
*Rapid Deployment Installations
*Protection of equipment from theft or damage
INSTALLATION INSTRUCTIONS
-
2022-11-30 Time.pdf
끂114 809.95 KB -
2022-11-28 Outset.pdf
끂165 806.58 KB

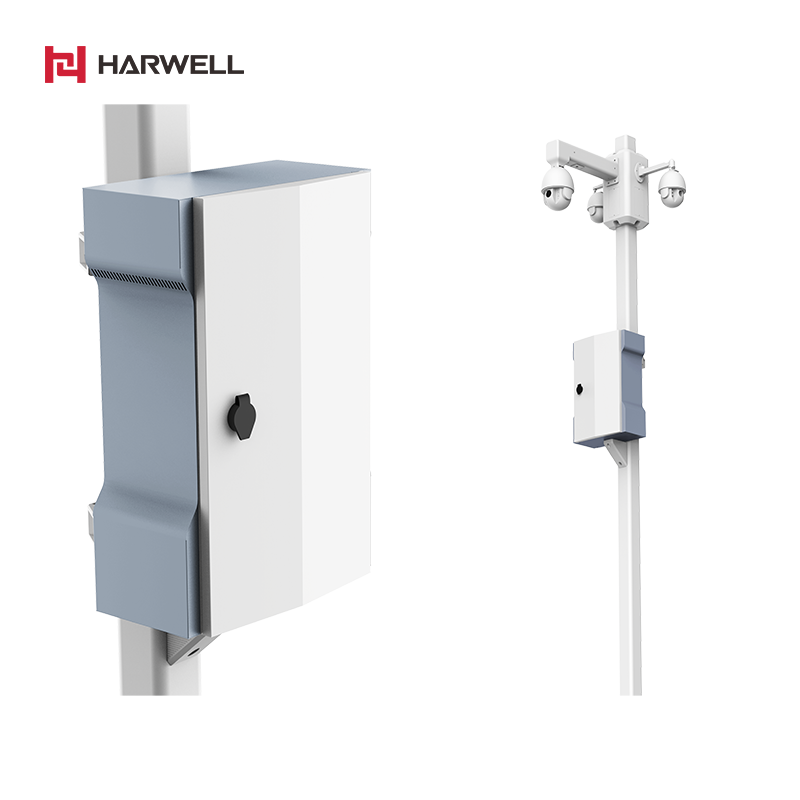

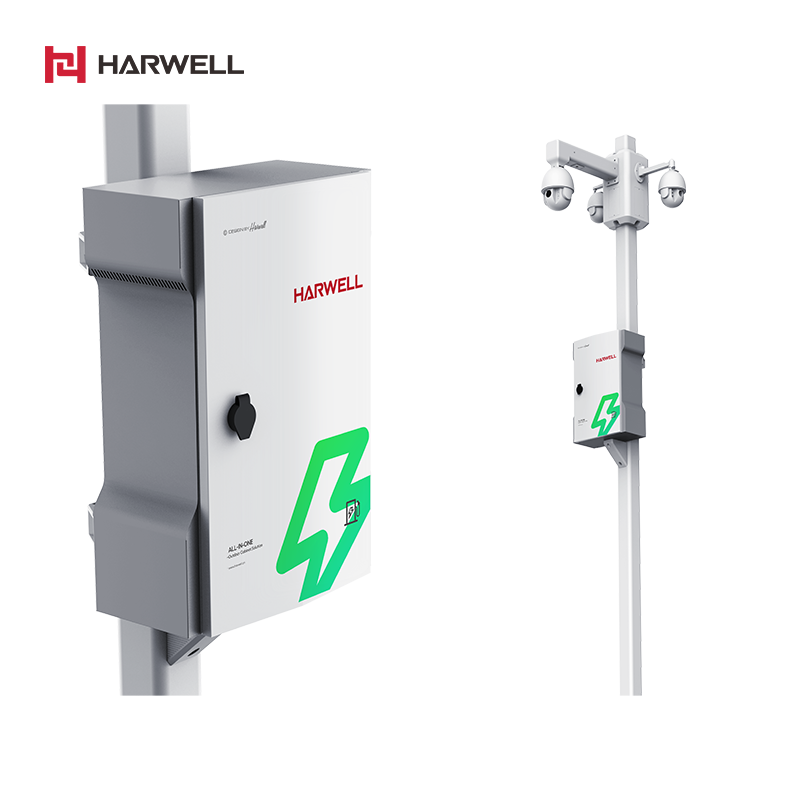

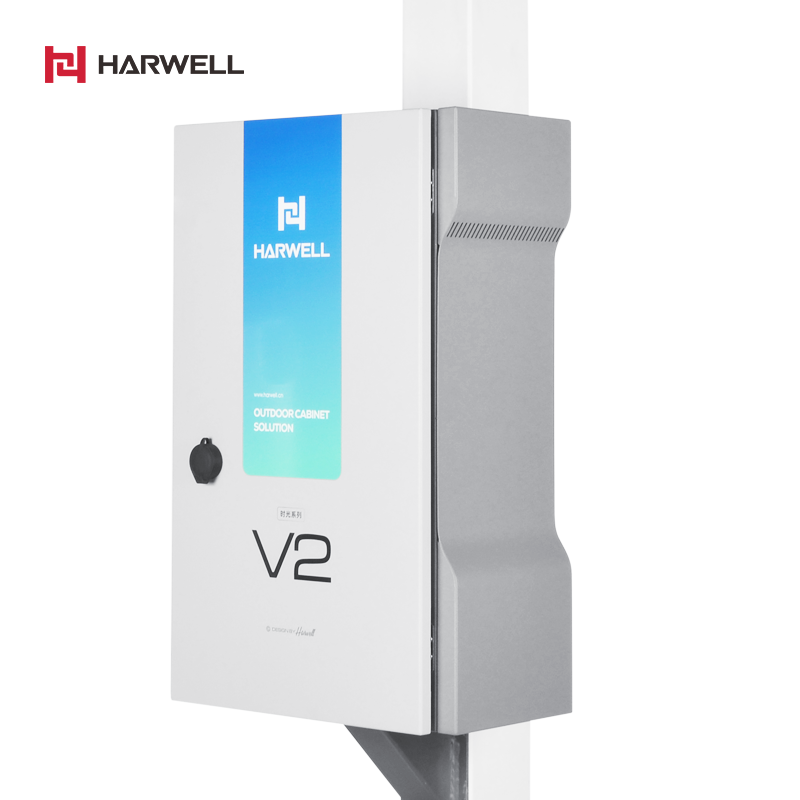

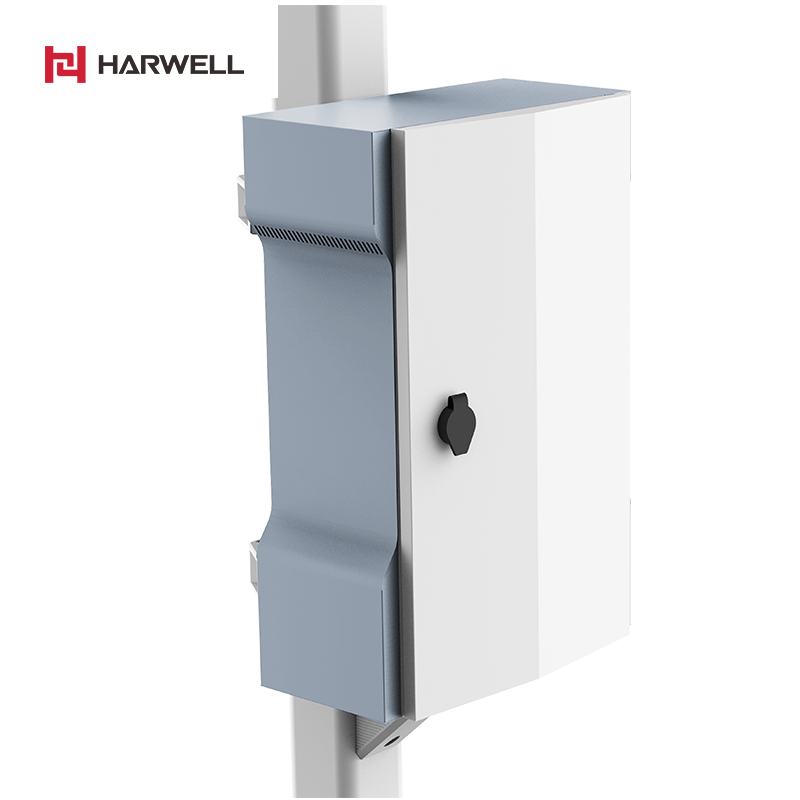

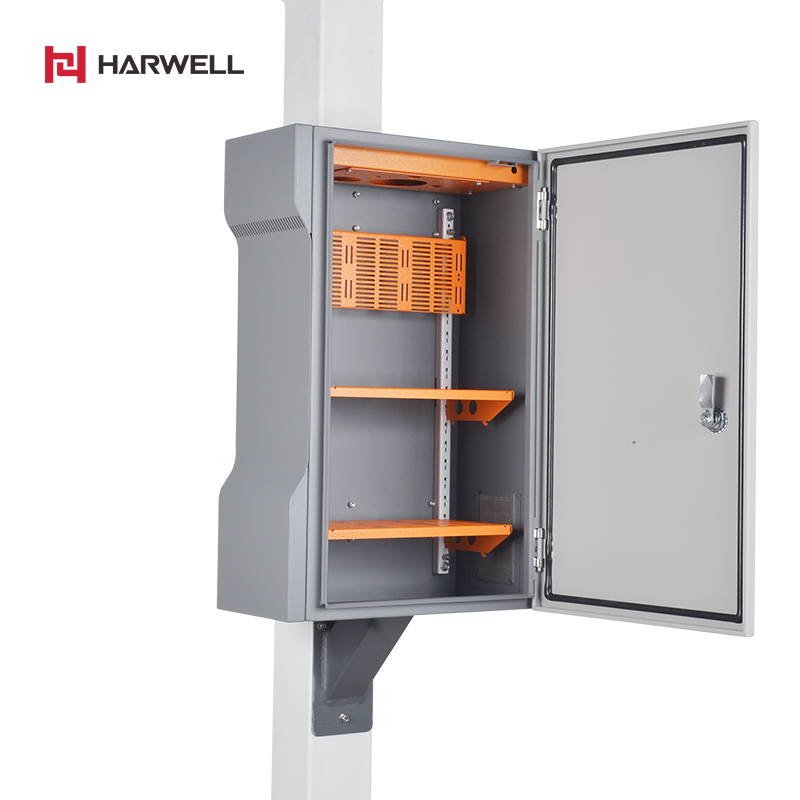

Different mounting accessories can be selected for pole, wall or Floor installation.
The same type of enclosure can meet construction requirements in different installation scenarios.
-
2022-11-28 Outset.pdf
끂165 806.58 KB
