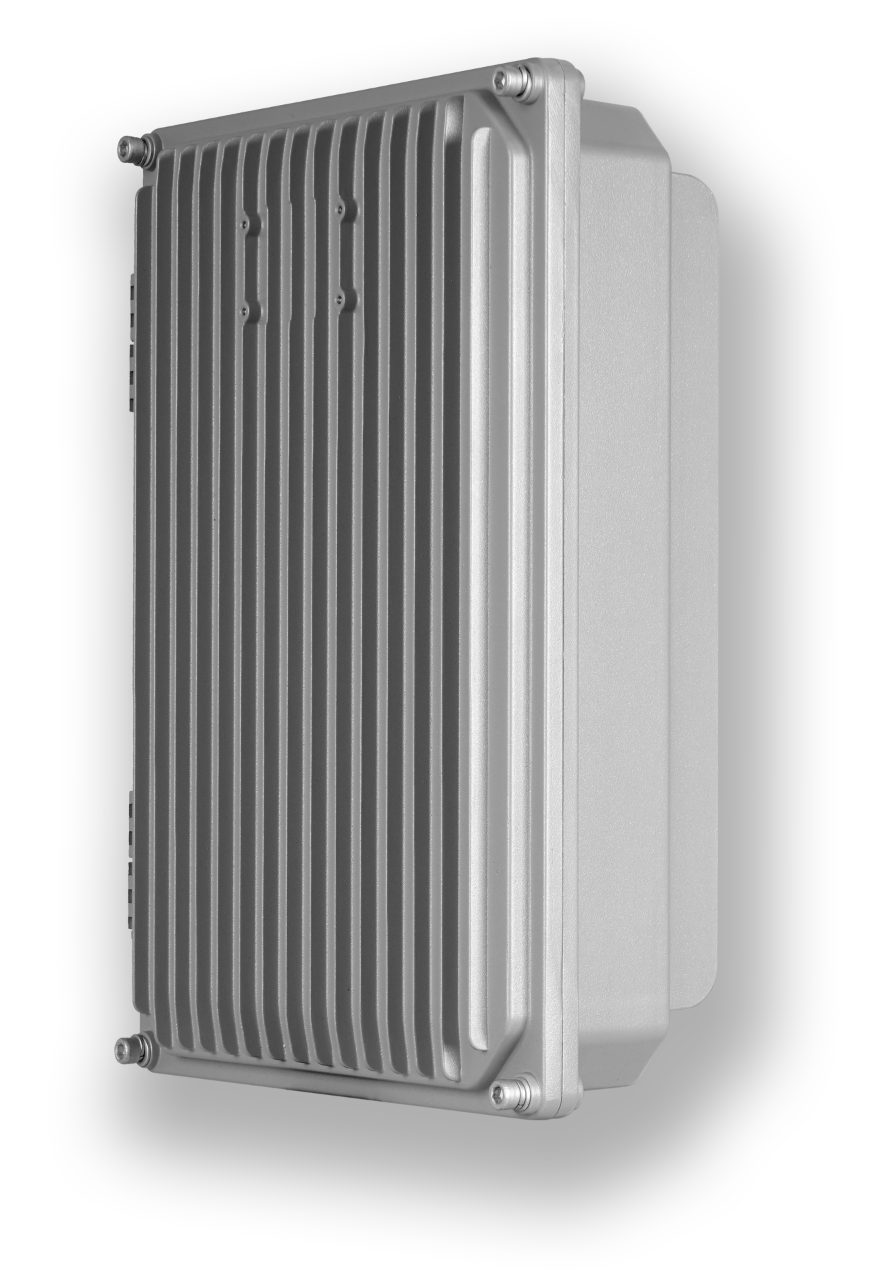

The aluminum alloy die cast aluminum enclosure is poured into the mold with molten aluminum, and the aluminum alloy main body is formed at one time. The toughness of the cast aluminum material provides high-strength impact protection for the die cast aluminum enclosure.

High Efficiency Heat Dissipation

The heat dissipation performance is good. After the inner wall of the shell absorbs heat, there are large-area heat sinks on the front and back of the outer wall of the shell to dissipate the heat. Good thermal conductivity, the thermal conductivity of aluminum is more than 3 times that of sheet metal.

Anti-corrosion
There is a dense oxide protective film on the surface of aluminum, which is not easy to be corroded.

Anti-signal interference
Ingenious one-time molding structure, remarkable electromagnetic shielding properties, anti-EMP electromagnetic pulse surge.

High Protection Level
Since there are no vents, the intrusion of rain, dust and foreign objects is completely prevented, and the protection level can reach IP67/NEMA6. One-time mold die-casting, high-strength IK10 impact resistance.

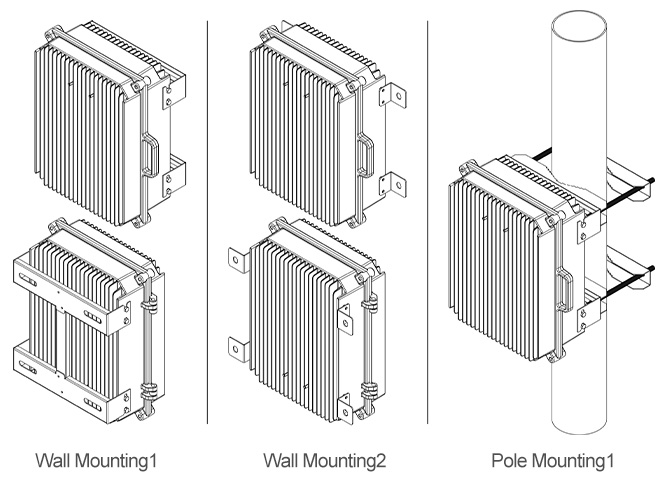

INSTALLATION INSTRUCTIONS

Choose different mounting parts to achieve pole, wall or floor mounting.

The same box can meet the construction requirements under different installation scenarios at the same time.
